How to Change Dynamometer Settings (Setup Mode)

This tutorial will show you how to change your dynamometer settings or to place your dyno in setup mode.


1. Open the main application
2. Select “Connect Dyno”

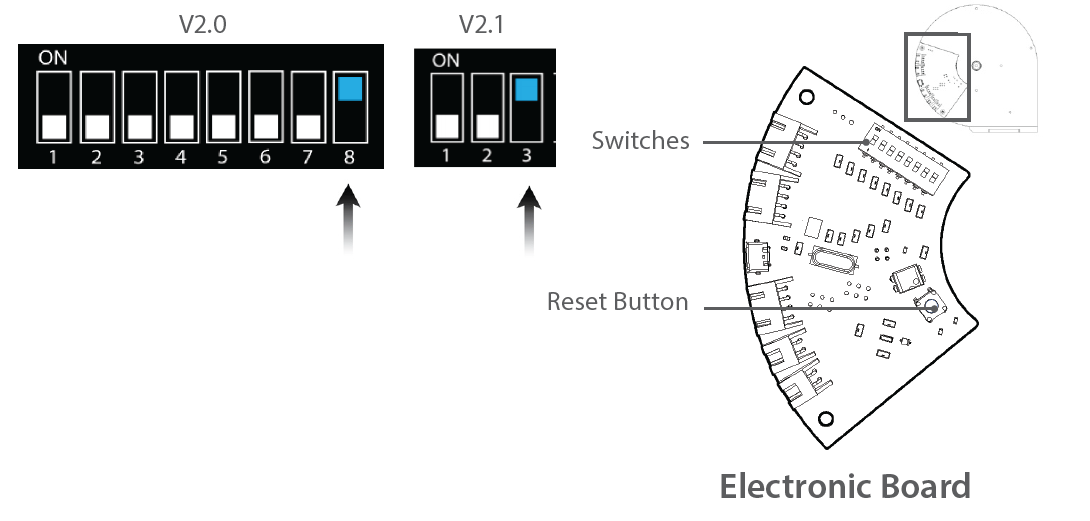

3. Change only Switch #8 to ON (Pin #3 for v2.1 Boards).
4. Press the Reset button 1 time on the board.
5. The Settings application should load automatically.

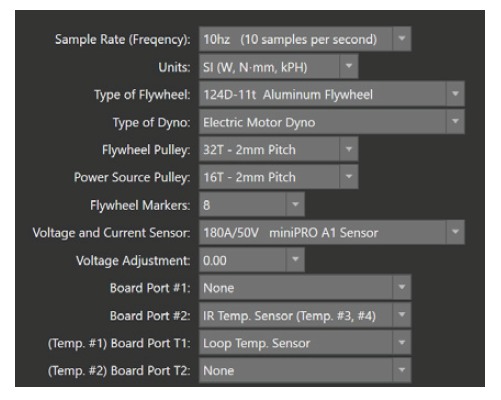

6. Select your desired settings

7. Select “Save” to complete your settings.
8. When finished, select “Disconnect.”
9. Change only Switch #8 to OFF.
10. Close the Settings Application.
11. Done! The main application should load automatically.


Note: Make sure you have firmware v1.7 or later, and installed the latest application of
miniPRO Dyno before you continue.
