How to Install your LCD Screen

  1. Plug the 4pin wire to the LCD and to Port #2 in your dyno board (4 pin connector next to the USB port).
  2. Put your Dyno in setup mode. (Link here)

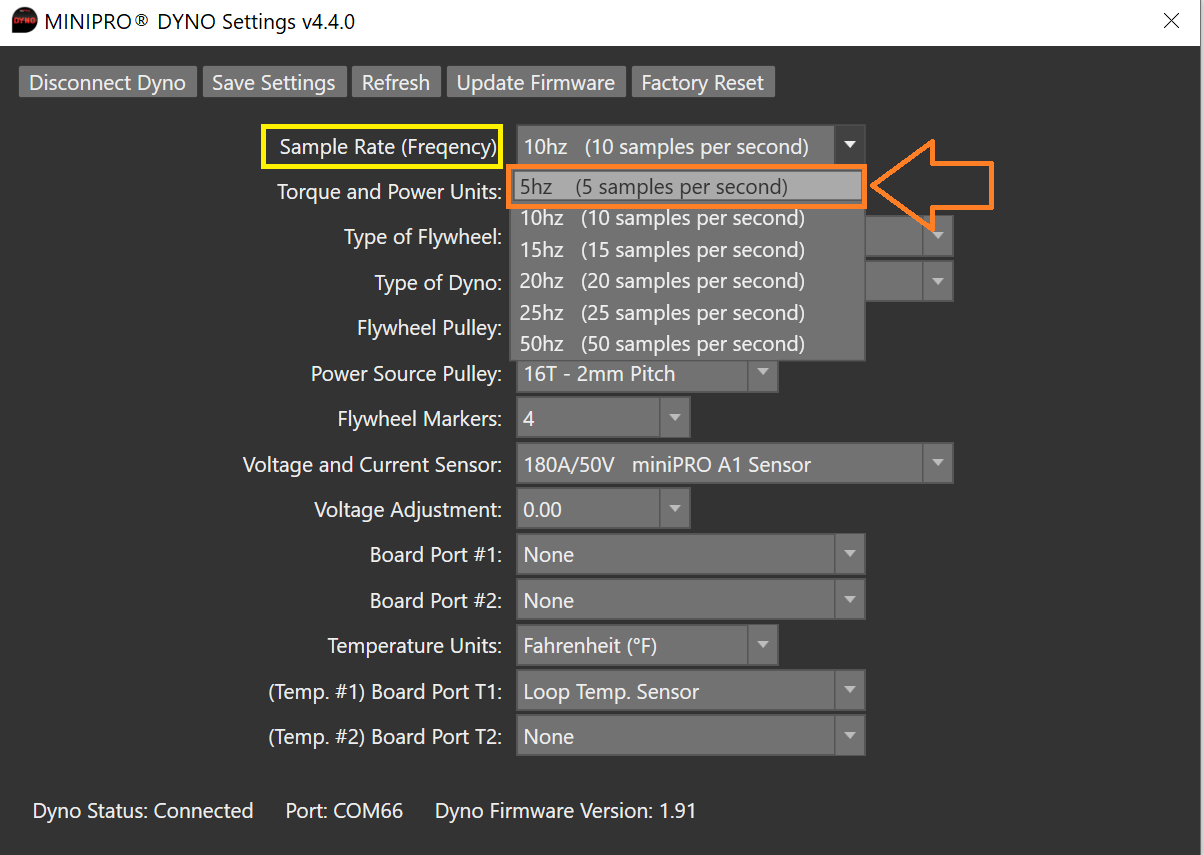

  3. Change Sample Rate (Frequency) to 5hz (see below)

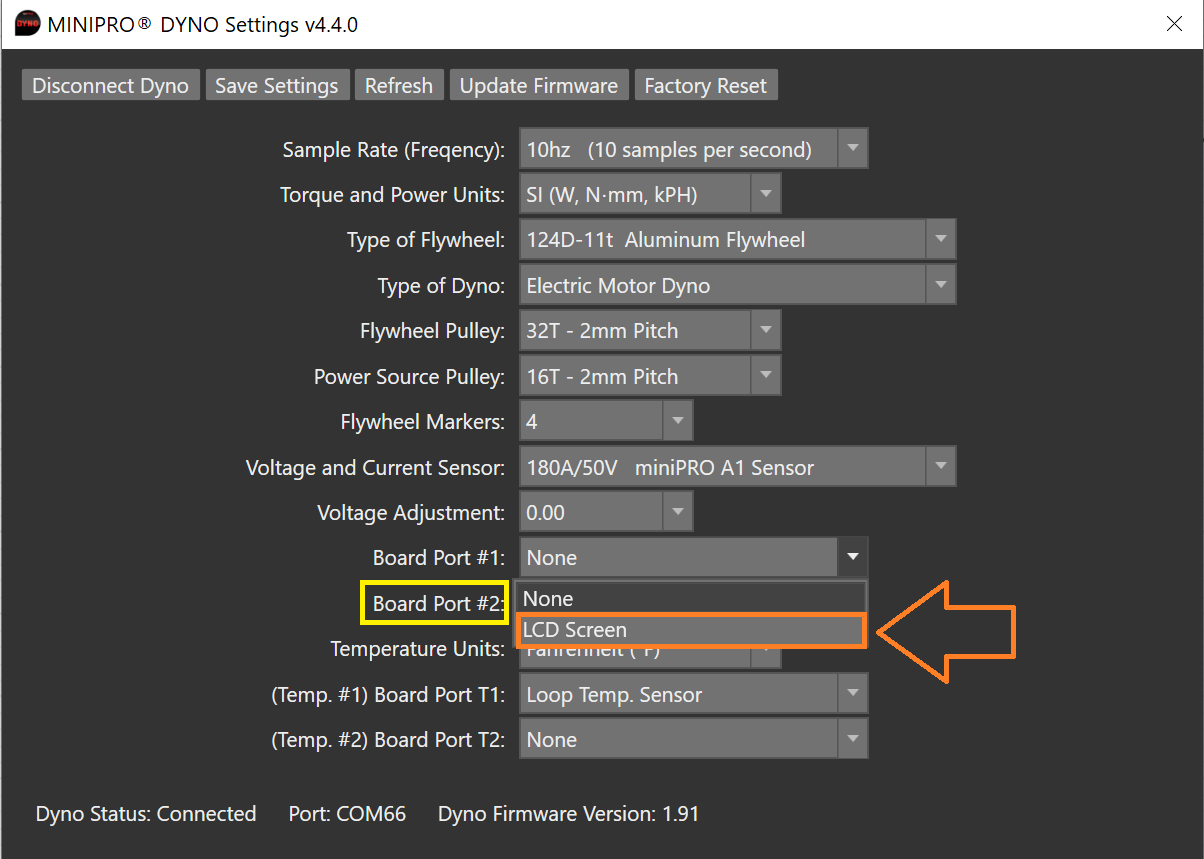

  4. Change the Board Port #2 to LCD Screen (see below)
  5. Click "Save"
  6. Click "Disconnect" and close the window.
  7. Switch PIN #8 or Pin #3 to off position (down)
  8. Push the Reset Button from the back of you dyno board
  9. Done!
