How to Change the Settings (Setup Mode)

Instructions:

1. Open the MINIPRO Software and click "Connect."
2. Make sure the dyno RPM is reading by rotating the flywheel by hand.
3. Change Pin #8 (boards with 8 pins are v2.0) or Pin#3 (boards with 3 pins are v2.1) to ON (up position).
4. Push the Reset Button from the back of you dyno board

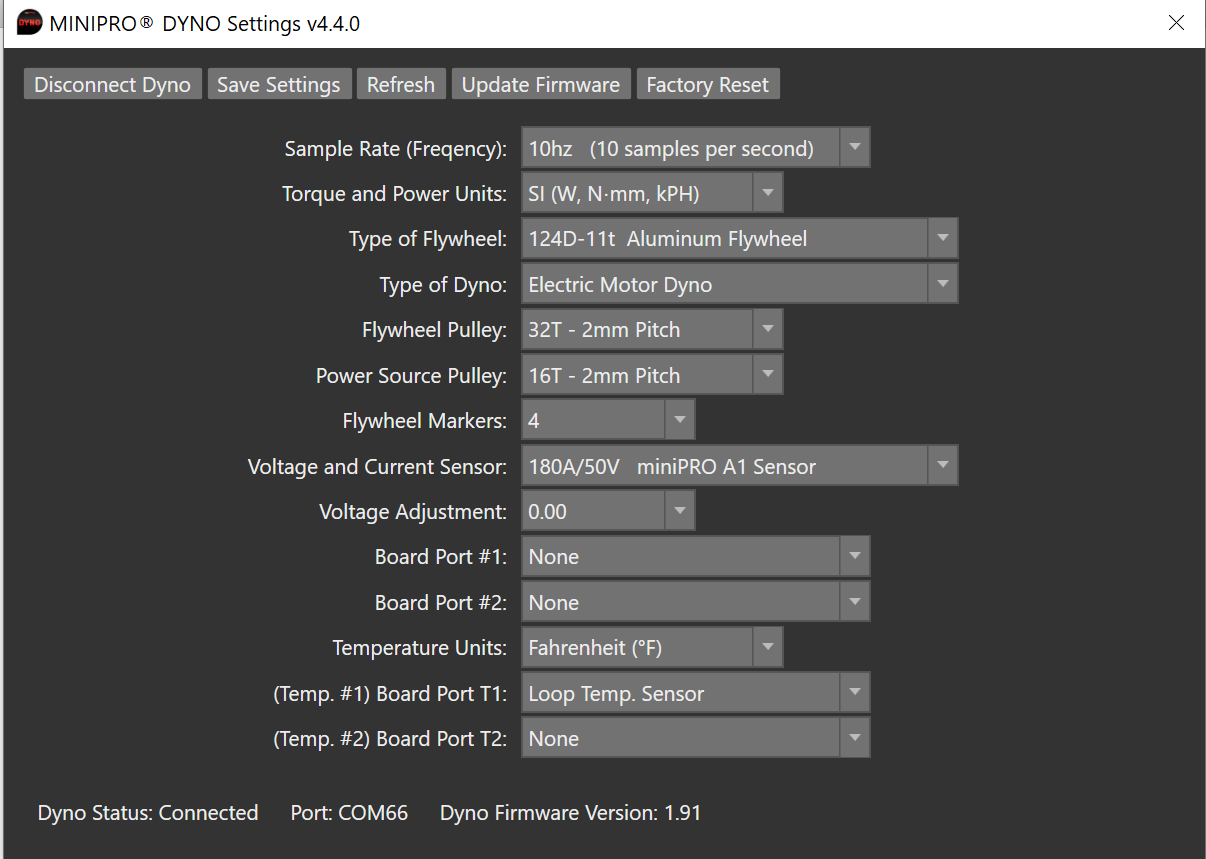

5. If it was done correctly, the settings window will show up. (see below)
   •
6. Change the desired units
7. Click "Save"
8. Click "Disconnect" and close the window.
9. Switch PIN #8 or Pin #3 to off position (down)
10. Push the Reset Button from the back of you dyno board
11. Done!
